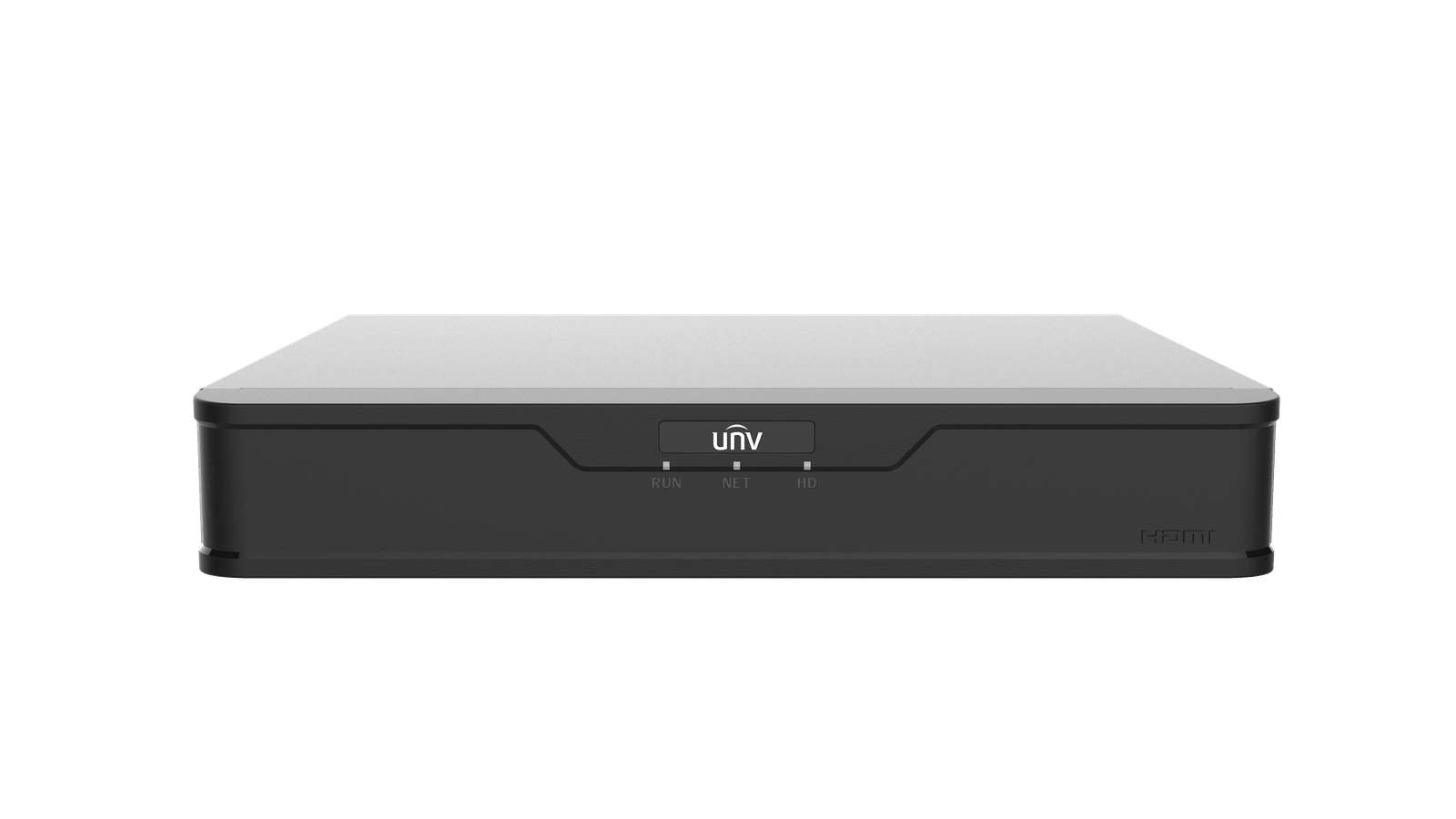

DVR XVR301-G3 Series 5MP

The XVR301-G3 Series is a 1U hybrid digital video recorder (DVR), designed to manage and record video from different surveillance cameras. It offers great integration flexibility with a variety of cameras and advanced features for high-quality video surveillance. Here is a detailed description of the main features of the XVR301-G3 Series :

1. Support for H.265/H.264 video formats

• The XVR301-G3 Series supports the H.265 and H.264 video formats, the two most common video compression technologies.
  • H.265 compresses videos while significantly reducing bandwidth consumption and storage space, while preserving optimal image quality.
  • H.264 is still widely used, especially for compatibility with a wide range of devices.
• These formats are essential for maximizing the efficiency of the video surveillance system while ensuring high-definition video quality.

2. Audio transmission over coaxial cable (TVI cameras only)

• The XVR301-G3 Series supports audio transmission over coaxial cable, but only for TVI cameras.
• This feature allows both audio and video to be transmitted over a single coaxial cable, reducing cabling complexity while improving installation efficiency.

3. Dual-light control of UNV analog cameras under TVI

• This model allows dual-light control of UNV (Uniview) analog cameras when they are connected via TVI.
• Dual-light control is useful for adjusting camera lighting conditions, especially for surveillance cameras that use infrared lighting to see in the dark. This ensures better visibility at night.

4. Compatibility with a wide range of cameras (TVI, AHD, CVI, CVBS, IP)

• The XVR301-G3 Series supports several camera types, including:
  • TVI (Transport Video Interface) : High-definition analog cameras.
  • AHD (Analog High Definition) : Analog cameras with high-definition resolutions.
  • CVI (Composite Video Interface) : High-definition analog cameras suitable for long transmission distances.
  • CVBS (Composite Video Baseband Signal) : Classic analog cameras.
  • IP cameras : Digital cameras connected to a network.
• This broad compatibility allows users to choose the cameras that best suit their needs while making it easier to integrate different types of technologies.

5. 4/8/16-channel BNC inputs

• The XVR301-G3 Series offers a flexible configuration with BNC inputs for 4, 8 or 16 cameras.
• Each input allows analog cameras (TVI, AHD, CVI, CVBS) or IP cameras to be connected, depending on the chosen configuration, so this system is adaptable to small or large installations.

6. HDMI and VGA video outputs

• It has 1 HDMI output and 1 VGA output, each supporting a resolution up to 1920×1080 (Full HD).
• These outputs allow the system to be connected to monitors or external screens for real-time viewing of recorded videos.
• The system can output simultaneously via HDMI and VGA, which is ideal for multi-channel surveillance with multiple screens.

7. Long-distance transmission via coaxial cable

• The XVR301-G3 Series is designed to support long-distance video transmission via coaxial cable. This makes it possible to deploy cameras over long distances without degrading video signal quality.
• This feature is essential for installations in large spaces such as parking lots, warehouses, or commercial buildings.

8. Compatibility with ONVIF and RTSP cameras

• The product is compatible with ONVIF cameras and RTSP cameras, ensuring easy compatibility and integration with third-party cameras and video surveillance devices.
  • ONVIF is an open standard that allows equipment from different manufacturers to work together, simplifying integration into larger systems.
  • RTSP (Real-Time Streaming Protocol) enables live video streaming over a network, which is perfect for remote monitoring.

9. 1U design for easy mounting

• The XVR301-G3 Series has a 1U design, which means it is very compact and can be easily mounted in a standard server rack.
• This is ideal for installations where space is limited, while still maintaining high processing capacity.
